Magnet Shape: Cube / Square
Material: Hard Ferrite (Ceramic)
Coating: No Coating
Grade(Chinese Stardard): Y32
Detailed magnetic properties data:
Residual Magnetic Flux Density (Br): 4.0-4.2 KGs (mT): 400-420 mT
Intrinsic Coercivity Force (Hcj): 2.01-2.37 KOe 160-190 KA/m
Coercivity Force (Hcb): 2.07-2.45 KOe 165-195 KA/m
Energy Density (BH)max: 3.4-4.0 MGOe 30.0-33.5 KJ/m³
Operating Temperature: -40 °C to +250 °C
Magnetisation Direction: Axial / Radially magnetized

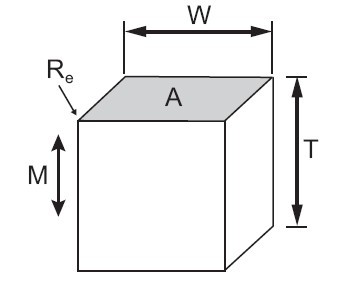

Size (Can be customized according to customer drawings):
Total length (L): 9 mm
Total width (W): 9 mm
Total thickness (T): 9 mm
Tolerance: +/-2% mm
Delivery time 7-25 days
Measurements
Ferrite Isotropic Ferrite Magnet:
(1).high working temperature
(2).steady property
(3).reasonable price
Model Number: Y35-Y40,Y30-35BH,Y30-35H
Type: Permanent
Composite: Ferrite Magnet
Shape: Bar
Application: Moto Magnet
Large Isotropic Ferrite Magnet Br: 380-400T
Large Isotropic Ferrite Magnet Hcb: 224-240kA/m
Large Isotropic Ferrite Magnet Hcj: 217-241kA/m
Large Isotropic Ferrite Magnet shape: cylinder,block, discs,arc,segment and customized shapes
Large Ferrite Magnet Working Temp.: 460-480 centigrade
Large Isotropic Ferrite Magnet Size: customized
